Chamfer Measurement

  • Fast, Easy and Accurate instrument for Chamfer Measurement

    Just place the part and press the button.
    Then measurement result appears easily.
    Anyone can use easily and receive consistent results.

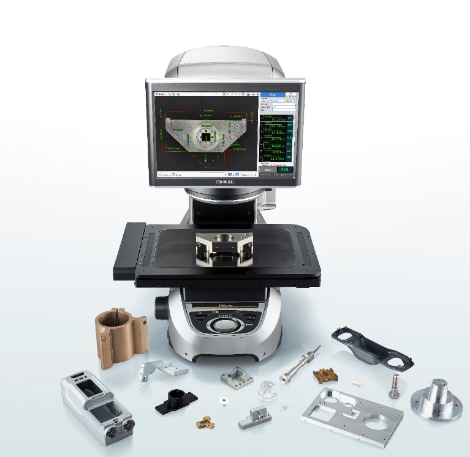

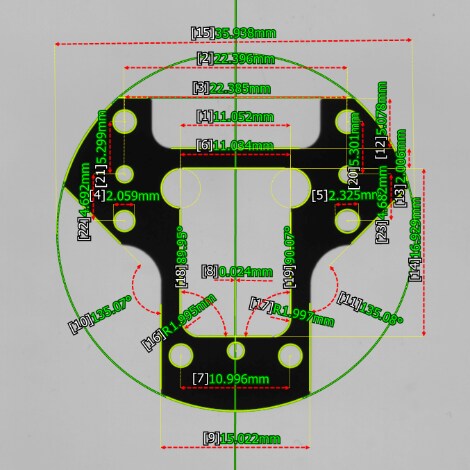

    With IM-8000, the following items can be easily measured.

    - Chamfer
    - PCD (Pitch Circle Diameter)
    - Radius
    - Diameter
    - Angle
    - Distance (Line to line, Hole to hole)
    - Virtual figures
    - GD&T

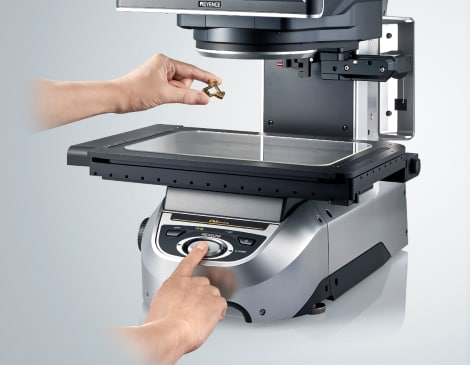

  • Just place the part and press the button

  • Measurement result appears easily
