Oct 1, 2014
Controller software version 3.14
Use this update tool to view the version.
The controller that you want to update
A 24 V power supply
A USB cable
A PC on which LJ-Navigator2 is installed
Do not turn the controller off while it is being updated.
The controller setup programme is saved after the update is completed, but in case a problem occurs, we recommend that you back up the controller settings before you perform the update. (LJ-Navigator2 has a backup function.)
1.Download the update tool.
(1)Create a new folder on your PC's hard disk.
(2)Select the update file, and then follow the instructions on the screen to download it.
When a message is displayed asking you whether you want to run or save the file, select to save the file. Specify the folder that you created in step (1), and then click "Save."
2.Perform the update.
(1)Decompress the "UpdateFiles_for_LJ-V7000_3_14.zip" file that you saved.
(2)In the folder that is generated, double-click "UpdateTool.exe."

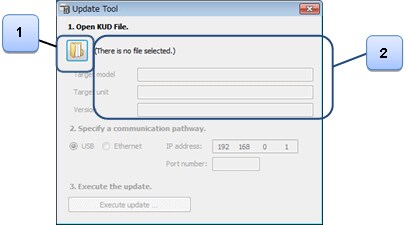

The "Update Tool" screen is displayed.
(3)Click (1) to select the update target file (with file extension .KUD).
When the selected file is correctly read, the file name and contents are displayed at (2).
(4)Click the update execution button.
(5)The version confirmation screen is displayed, so confirm the current version, and then click the button to start the update if you want to execute the update.
(6)When the completion message is displayed, the update process is complete.
Restart the controller to use it.
