Starts up Any Motor in 5 Minutes A game-changer for motor control New-generation PLC NEW Programmable Logic Controller KV-X Series

Outstanding Speed of Setup, Transfer and Programming

Compliant with IEC 61131-3, an international standard, and equipped with Universal Library and PLCopen Motion Control FB

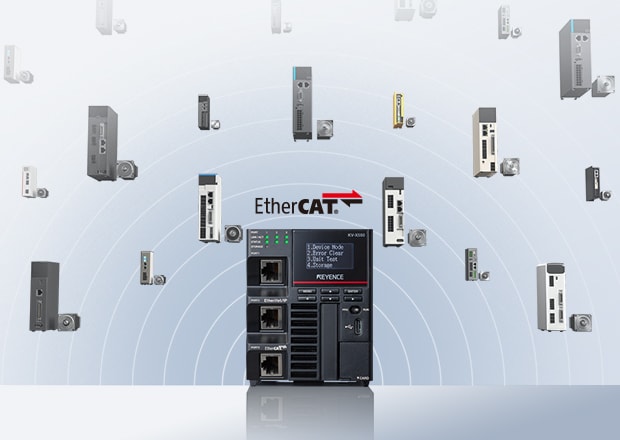

Supports 16 brands and 39 series. Startup process can be completed in just 5 minutes across all brands

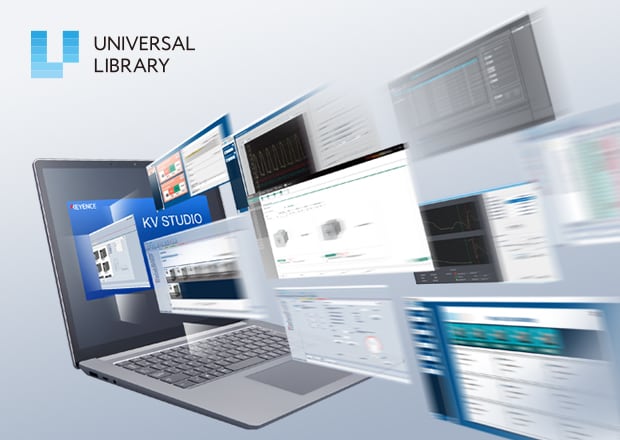

Universal Library makes it possible to select the optimal motor brand according to your purpose.

Integrating configuration software for all brands into KV STUDIO

Offering common settings and programs for different brands, KV STUDIO can handle the entire process from design to startup.

Novel PLC Platform

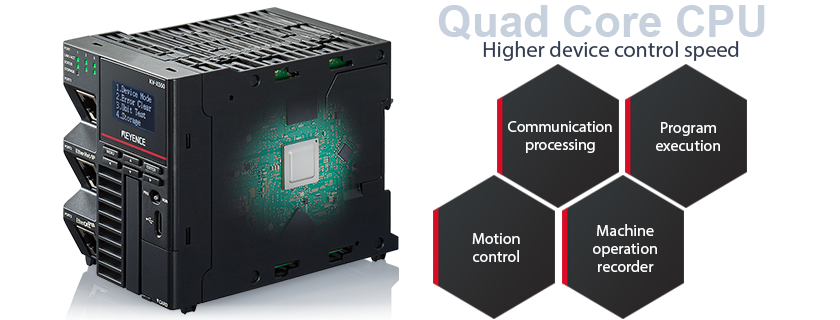

Adoption of Quad Core CPU and large-capacity memory.
Motion control period, program execution speed and system responsivity.
Achieving higher speed for any device control.

Ultra high-speed motion performance

Ultra-high-speed: 12 axes at 125 µs, Multi-axis: 128 axes at 1 ms or less

Program execution speed

About 27 times faster than conventional products

System responsivity

Unit interrupt: 5 µs, 40 µs inter-unit synchronisation

High-speed machine operation recorder function

Machine operation recorder processing speed is reduced to 1/10

Single CPU Controls a Large System Max. 256-Axes EtherCAT® Motion Installed

Motors play major role in system control than ever before, so larger numbers of motors are being used in various systems.
With up to 256 axes incorporated in the CPU, the KV-X supports a diverse range of topologies and offers the performance required for large-scale systems.

Changing the Scene of Programming Development

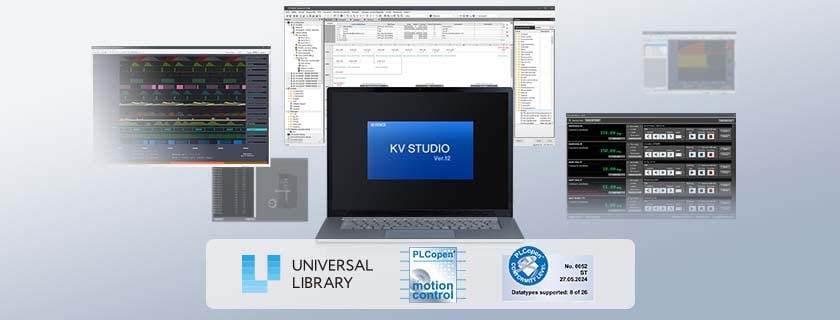

KV STUDIO for KV-X Series

Newly equipped with Universal Library to challenge the status quo of motor control, this PLC is compliant with IEC 61131-3, an international standard for PLC programs, and is equipped with PLCopen Motion Control FB.
This PLC accelerates every process from design to startup.

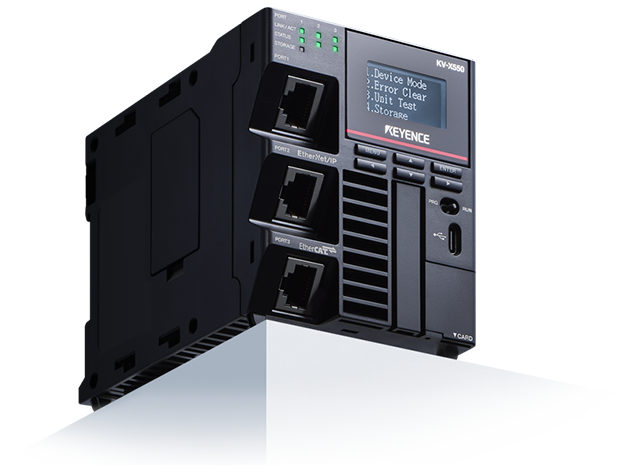

Rich Lineup of Models Allows for Many Possibilities

The ultra-high-performance CPU can be selected according to the number of motor axes.

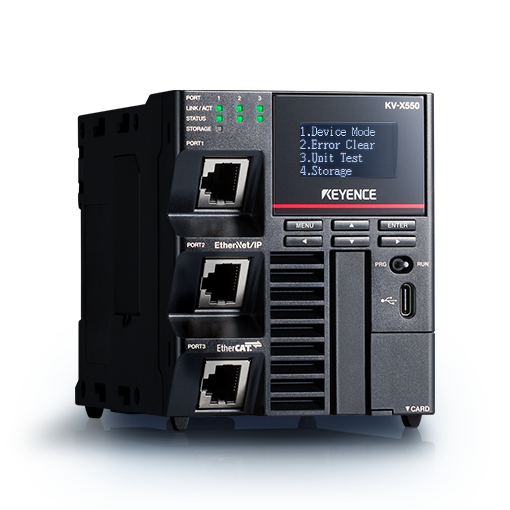

KV-X550

256 axes

KV-X530

64 axes

KV-X520

32 axes

KV-X310

12 axes

Learn more in the catalogue
