I/O Circuit Connection diagram

* Download CAD file or product manual for larger image/text and more detail.

I/O Circuit

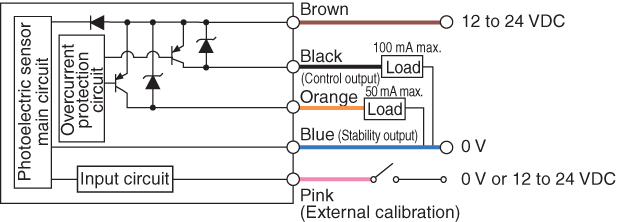

FS-M1P IO circuit

* The FS-M1P does not have a pink cable (for external calibration).
When the stability output is not used, cut the orange cable at the base, or connect this cable to
the 0 V terminal of the power supply.
