Programmable Logic Controller KV-X series

New Starts up Any Motor in 5 Minutes

A game-changer for motor control New-generation PLC.

  • [Easy] With Universal Library built in, the startup process can be completed in just 5 minutes
  • [Ultra high-speed] The control periods of 125 µs/12 axes and 1 ms or less/128 axes provide high-speed motion control
  • [Multi-axis] With EtherCAT® motion installed, up to 256 axes can be controlled with a single CPU, allowing even large-scale devices to be controlled

KV-X series - Programmable Logic Controller

Equipped with Universal Library to challenge the status quo of motor control, this new-generation PLC is compliant with IEC 61131-3, an international standard for PLC programs. The Machine Operation Recorder function records all variables, devices, cameras, and events when a problem occurs. This PLC accelerates every process from design to startup. Furthermore, the novel PLC platform adopts a Quad Core CPU and large-capacity memory, and the CPU unit works with the EtherCAT®, EtherNet/IP™, and OPC UA communication protocols. Motion control period, program execution speed, and system responsivity. This PLC achieves higher speed for various types of device control.

Features

Outstanding Speed of Setup, Transfer and Programming

Compliant with IEC 61131-3, an international standard, and equipped with Universal Library and PLCopen Motion Control FB.

Supports 16 brands and 39 series. Startup process can be completed in just 5 minutes across all brands

Universal Library makes it possible to select the optimal motor brand according to your purpose.

Integrating configuration software for all brands into KV STUDIO

UNIVERSAL LIBRARY

Offering common settings and programs for different brands, KV STUDIO can handle the entire process from design to startup.

Novel PLC Platform

Adoption of Quad Core CPU and large-capacity memory.
Motion control period, program execution speed and system responsivity.
Achieving higher speed for any device control.

  • [Ultra high-speed motion performance] Ultra-high-speed: 12 axes at 125 µs, Multi-axis: 128 axes at 1 ms or less
  • [Program execution speed] About 27 times faster than conventional products
  • [System responsivity] Unit interrupt: 5 µs, 40 µs inter-unit synchronisation
  • [High-speed machine operation recorder function] Machine operation recorder processing speed is reduced to 1/10

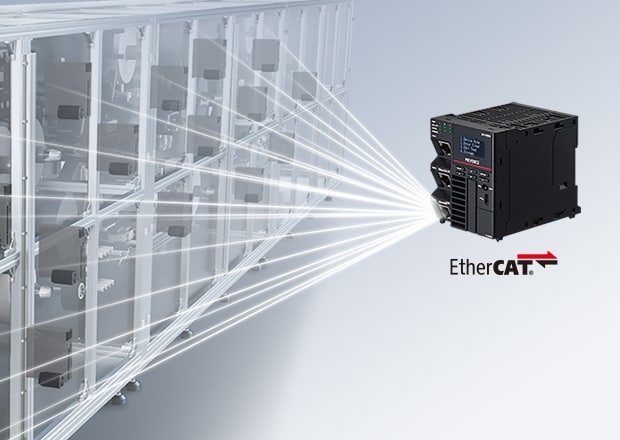

Single CPU Controls a Large System Max. 256-Axes EtherCAT® Motion Installed

Motors play major role in system control than ever before, so larger numbers of motors are being used in various systems.
With up to 256 axes incorporated in the CPU, the KV-X supports a diverse range of topologies and offers the performance required for large-scale systems.

Changing the Scene of Programming Development
KV STUDIO for KV-X Series

Newly equipped with Universal Library to challenge the status quo of motor control, this PLC is compliant with IEC 61131-3, an international standard for PLC programs, and is equipped with PLCopen Motion Control FB.
This PLC accelerates every process from design to startup.

Rich Lineup of Models Allows for Many Possibilities

The ultra-high-performance CPU can be selected according to the number of motor axes.

256 axes

KV-X550

64 axes

KV-X530

32 axes

KV-X520

12 axes

KV-X310
