Spot welding electrode wear inspection

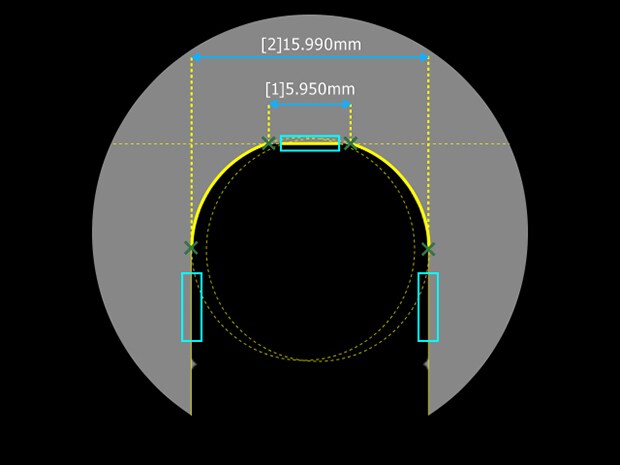

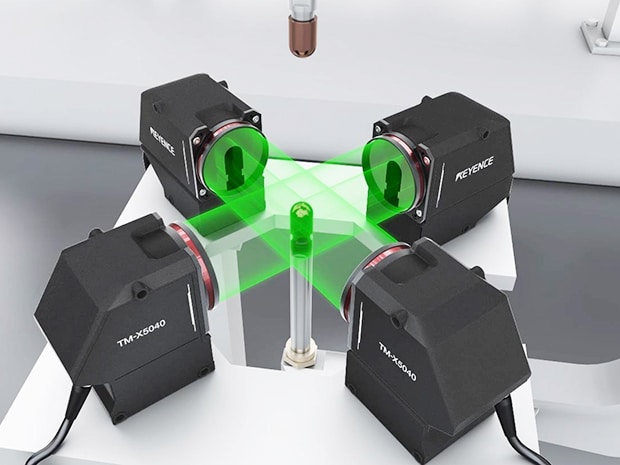

The wear of electrodes used for spot welding is inspected to a high degree of accuracy using projection images. By using profile tools to compare against the masters, subtle shape changes are captured to improve management for electrode replacement periods and to increase yield rates.
