Rivet dimensional measurement

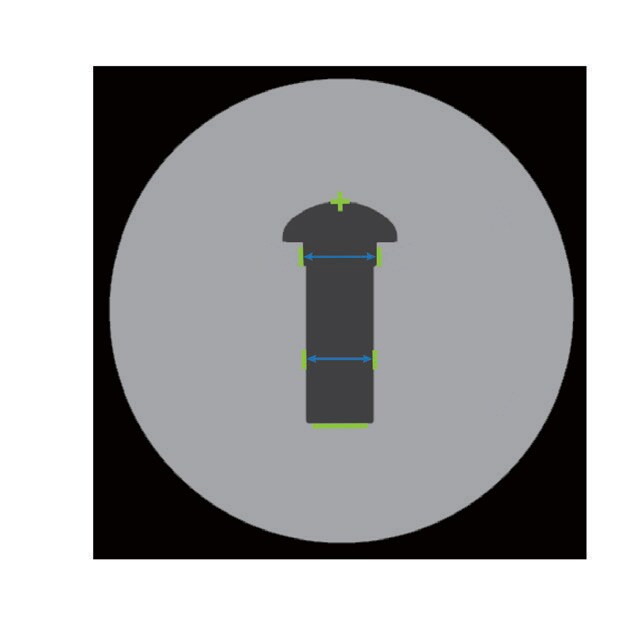

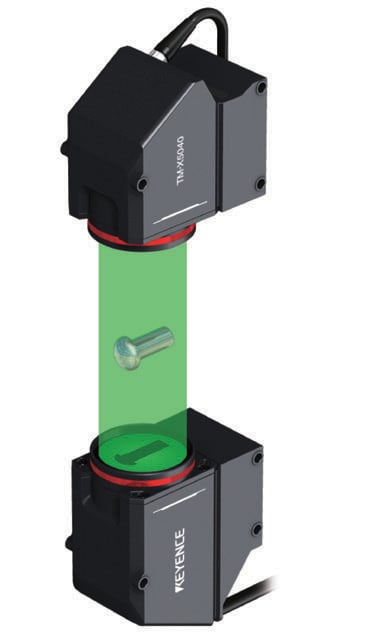

Rivet dimensional measurements are performed with 2D measurement sensors. Rivets are small and have complicated shapes, so it was difficult to deal with positioning and the tilt of rivets with conventional outer diameter measuring instruments. The TM-X5000 Series has a position correction function and an alignment adjustment function, so it can be used to perform stable measurements with high accuracy.
