Measurement of Electrode Terminal Dimensions

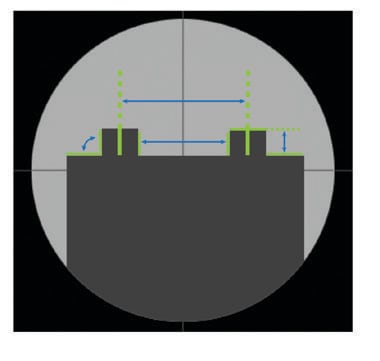

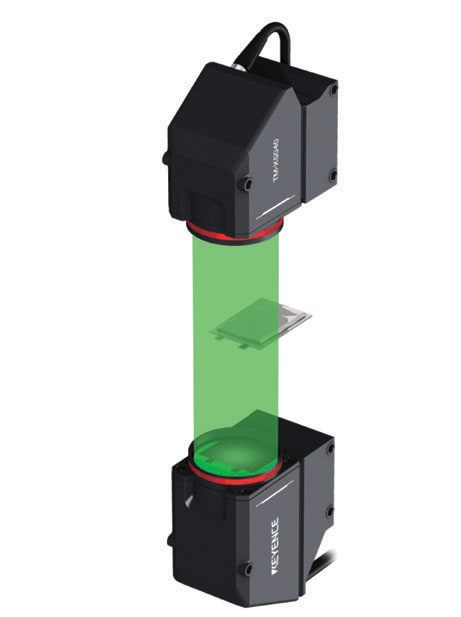

Electrode terminals (double leads) are measured immediately after welding, so any misalignment is readily detected. Height and tilt defects, as well as missing terminals, can also be reliably detected at the same time.
