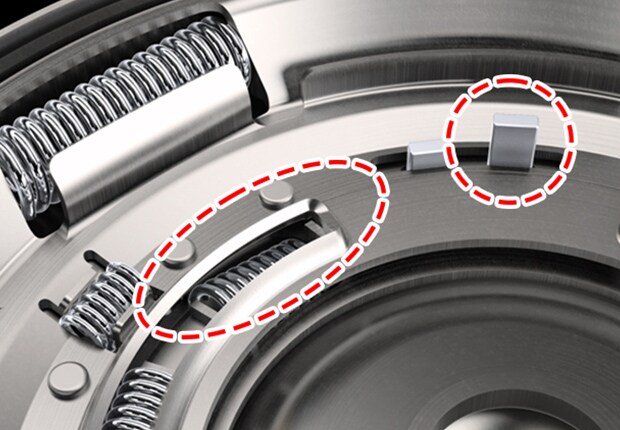

Torque converter assembly inspection

In processes for assembling metal parts, even if the parts are the same colour as the background, inspections unaffected by low contrast and greyscale variations are possible because they are performed with height information obtained from 3D images. In the case of inspections using pattern projection lighting, the optimal image (the normal image, LumiTrax™ image, or 3D image) can be selected, reducing the time required to adjust settings and improving the yield rate.

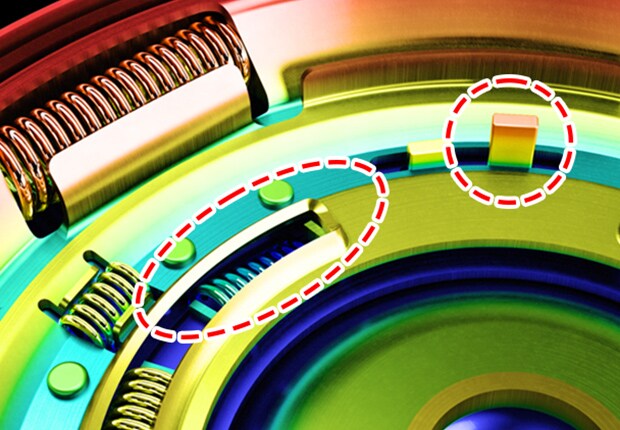

3D image (colour image)

3D image (height image)
