Static elimination in the coating process of bumpers
Static elimination of films
Static elimination of slitters
Defect prevention of adhesive painting on cardboard
In conventional models, the GND plate essential for ion generation is mounted externally. KEYENCE's SJ-H Series, however, is the first to adopt the I.R.G. (Insert Ring Ground) structure, which includes the plate inside the ioniser. By directing the generated ions to the target rather than the GND plate, loss is minimised and the number of ions applied to the target increases. This allows for high-speed static elimination five times faster than conventional models.
The new aero body was developed with thorough fluid analysis to minimize air resistance. With the world's first wide-angle booster, the SJ-H Series achieves a 90-degree-wide static elimination angle by utilizing the Coanda effect with the air flowing from the booster. By attaching the straight air booster with extraordinary ion transport capabilities, an unparalleled static elimination speed is achieved. This function can ensure excellent static elimination capacities at ultra-long operating distances for highly charged objects.
With wide-angle booster attached (side view)
With straight air booster attached (side view)

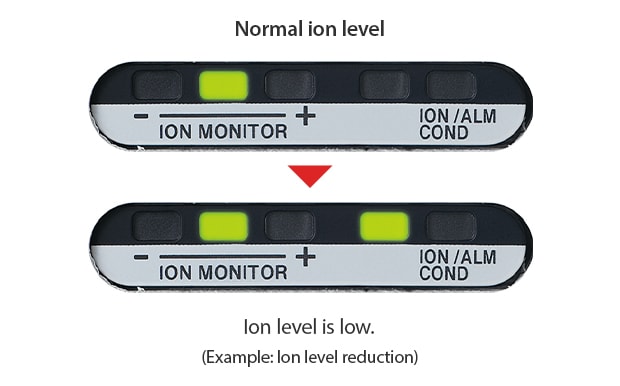

The SJ-H Series includes a self-diagnosis function that monitors the ion generation level. With the bar LED and alarm outputs, the ioniser alerts you when maintenance is required.
Eliminate static electricity on a target area of 1000 mm at an installation distance of 200 to 1000 mm. With no need for an air supply, the SJ-F is suitable for desktop use.
Eliminate static electricity for a target area of 200 mm at an installation distance of up to 200 mm. The SJ-M Series boasts an ultra-compact ⌀10 mm static electricity elimination head suitable for installations within equipment or in narrow spaces.
